BEYIMEI DC 9-32V to 12V5A, Voltage stabilized Converter Regulator with Quick Connection Cable, DC to DC Adapter Stabilizer,Waterproof Regulated DC Power Supply for Golf Cart Club Car LED Light.

Description

DC/DC 9-32V to 12V/5A DC regulator

Parameters

Brand: BEYIMEI

Input Voltage: DC 12V

Input Voltage Range: DC 9-32V

Efficiency: Over 90%（When 24V input）

Output voltage: DC 12V

Output current: 5A

Output power:60W

Waterproof rating: IPX-7

Working temperature: -25℃ ～ +65℃

Working Humidity: 0～95%RH

Storage temperature：-40℃ ～ +85℃

Storage Humidity: 0～95%RH

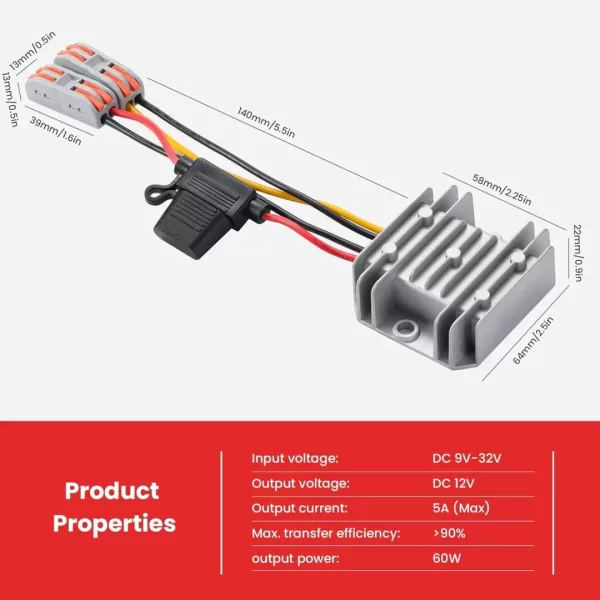

L*W*H: 66*60*22MM

Net weight: 100G

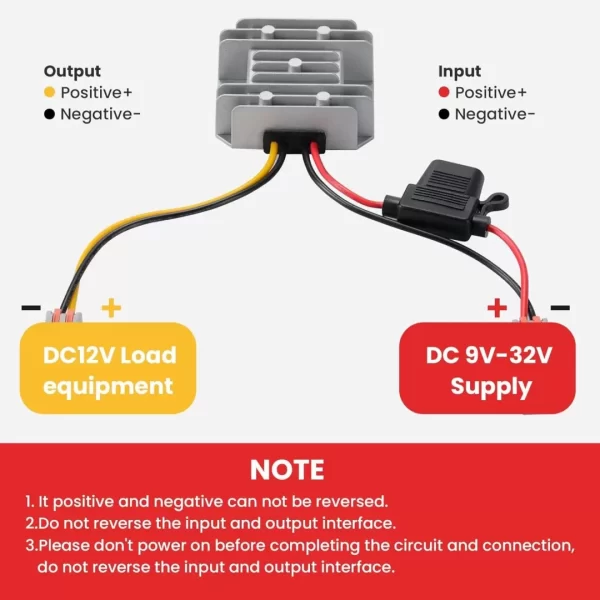

12V regulator connection:

Input: red(+) black(-)

Output: yellow(+) black(-)

Protection against transient high voltage at input, protection against over current at output, protection against over temperature at chip.

DC voltage regulator safety manual

1. the load connected to the output of the power regulator should not be higher than the MAX LISTED LOAD POWER, any higher load will cause damage to the power regulator.

2. in the process of use, if the ambient temperature is too high, should be appropriate to reduce the use of power, low-temperature operation is a guarantee that the power supply can work reliably for a long time.
