BEYIMEI DC to DC converter 15-35V to 12V10A voltage regulator
- Rated Input Voltage DC 24V to 12V10A DC/DC converter regulator reducer step down.Meet your actual power supply needs.
- Output Voltage: 12V DC(Fixed Output), Output Current:10A Max, Output Power:120w Max, High Conversion Efficiency: up to 95%
- Protection: Built in overcurrent, overtemperature and short-circuit protection
- Application: Suitable for truck vehicle, golf cart, led strip light, screen, monitoring system, Electronic systems and DIY etc

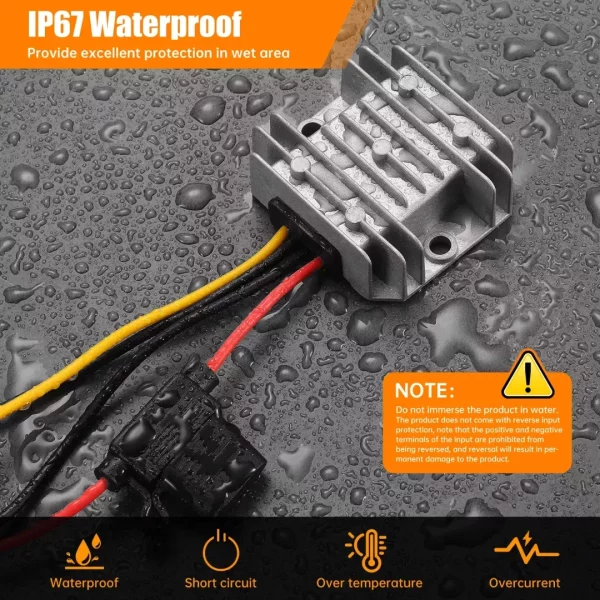

- Design:Aluminum case and silicone sealed IP67 waterproof, shockproof and moisture proof for more durability
Additional information
Additional information
| Weight | 0.1 kg |
|---|
BEYIMEI DC to DC converter 15-35V to 12V10A voltage regulator
Description
DC/DC 15-35V 24V Step down to 12V10A CONVERTER
Parameters:
Name :DC Buck Converter
Brand: BEYIMEI
Function：Volt age Reduce
Input Range：15-35v
Rated Input Voltage：24v
Output Voltage: 12V
Output Current: 10A MAX
Output Power:120W MAX

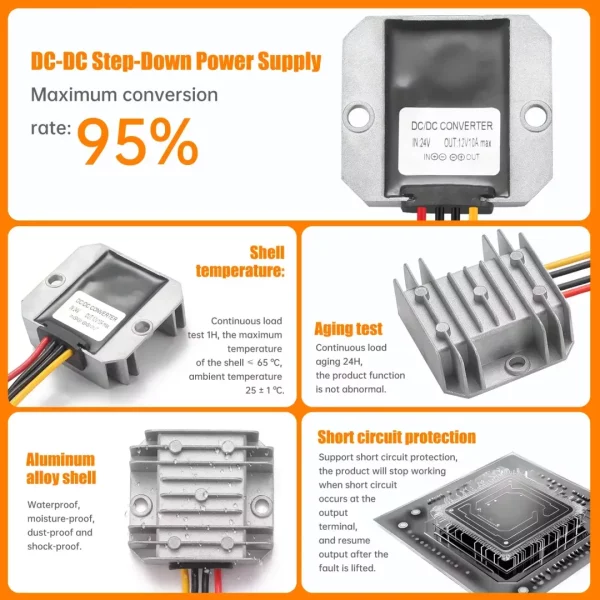

Transfer Efficiency：95%
Waterproof Rating: IP67
Working Temperature: -20-65°
Storage Temperature：-40-85°
Working Humidity: 10%-90%RH

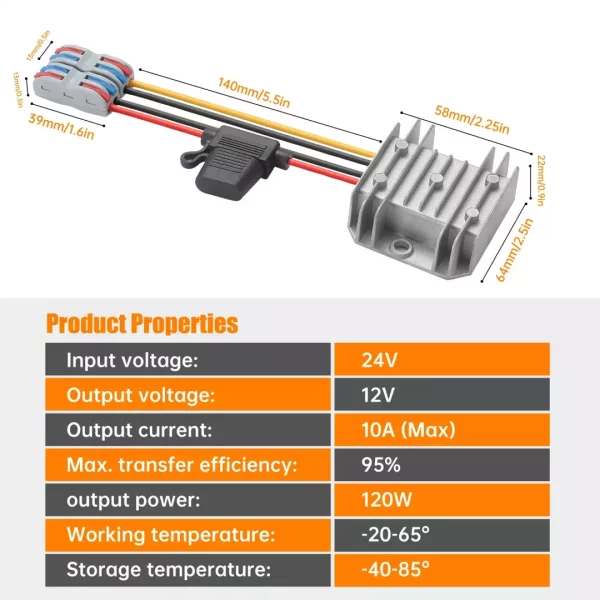

Size:
L*W*H: 2.59 *2.24*0.86in
Weight: 3.52oz
defencive function:
Short-circuit protection：✔
Overtemperature protection:✔
Overcurrent protection:✔
Anti-connection protection:✘
⚠Cautions：
1. Do not use it near a heat source (such as a fire or a heater)
2. Do not connect the input line to 220V electricity
3. Do not put the product into the fire or heat it
4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects
5. Non-professional personnel are prohibited to disassemble and repair by themselves
Package Includes:
1x DC to DC Voltage Down Transformer Board
Please feel free to contact us if you have any questions with installation or quality.
