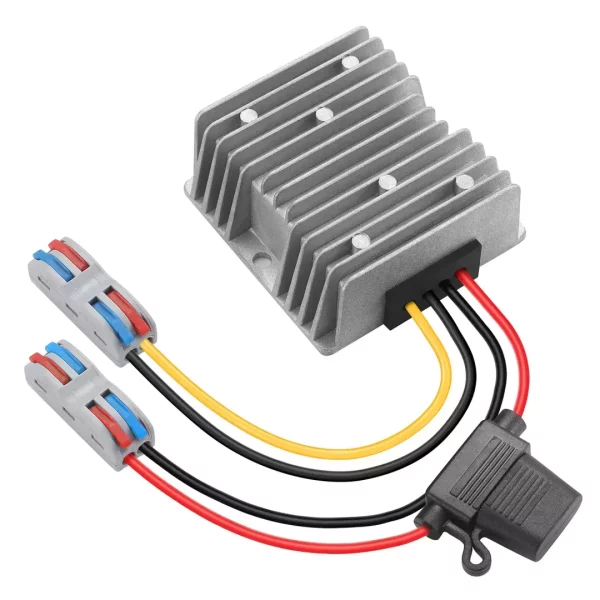

BEYIMEI Voltage Reducer,DC to DC Converter 30-90V 24V/48V/60V/72V to 24V20A
- DC24V/48V/60V/72V to 24VDC converter regulator step down to 24V 20A.Meet your actual power supply needs.
- Output Voltage: 24V DC(Fixed Output), Output Current:20A Max, Output Power:480w Max, High Conversion Efficiency: up to 95%
- Protection: Built in overcurrent, overtemperature and short-circuit protection
- Application: Suitable for truck vehicle, golf cart, led strip light, screen, monitoring system, Electronic systems and DIY etc

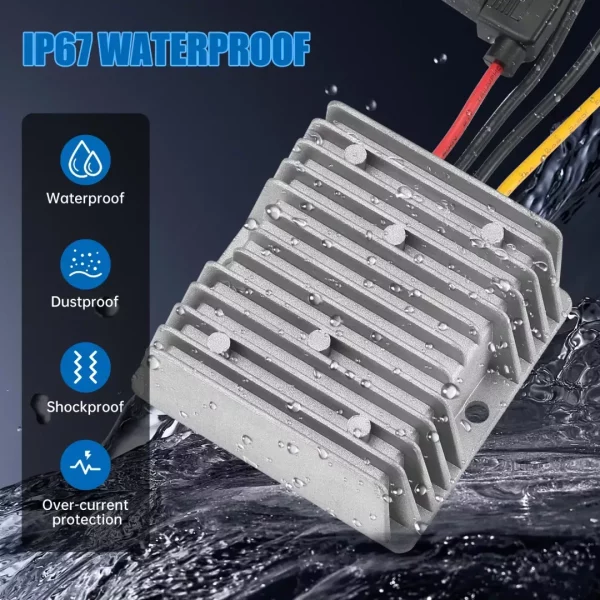

- Design:Aluminum case and silicone sealed IP67 waterproof, shockproof and moisture proof for more durability
Additional information
Additional information
| Weight | 0.29 kg |
|---|
BEYIMEI Voltage Reducer,DC to DC Converter 30-90V 24V/48V/60V/72V to 24V20A
Description

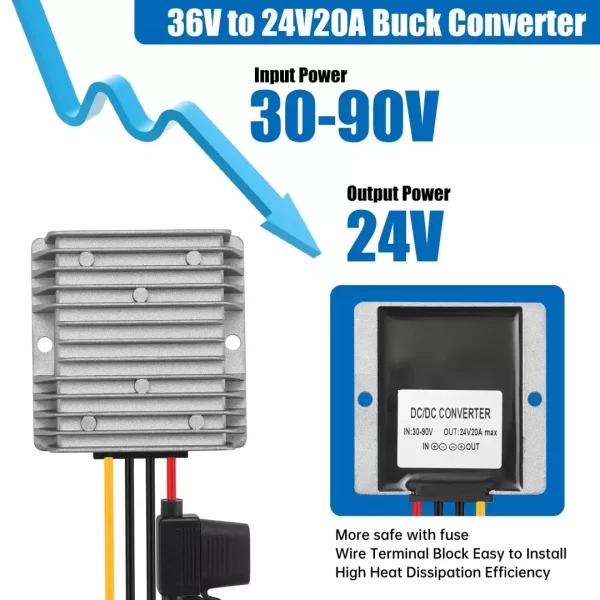

DC/DC 30-90V 24V/48V/60V /72V Step down to 24V20A CONVERTER

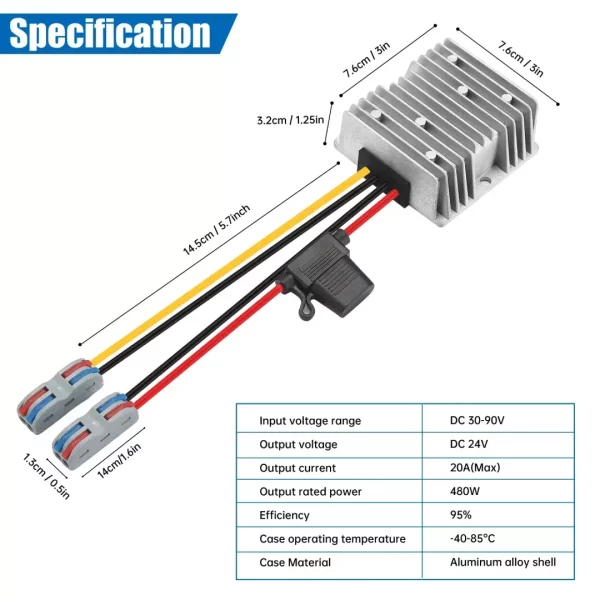

Parameters:
Name:DC Buck Converter
Brand: BEYIMEI
Function：Voltage Reduce
Input Range：30-90v
Rated Input Voltage：24V/48V /60V/72V
Output Voltage: 24V
Output Current: 20A MAX
Output Power:480W MAX
Transfer Efficiency：95%
Waterproof Rating: IP67
Working Temperature: -20-65°
Storage Temperature：-40-85°
Working Humidity: 10%-90%RH
Heat Dissipation Method：Natural Heat Dissipation
defencive function:
Short-circuit protection：yes
Overtemperature protection:yes
Overcurrent protection:yes
Anti-connection protection:no
Cautions：
1. Do not use it near a heat source (such as a fire or a heater)
2. Do not connect the input line to 220V electricity
3. Do not put the product into the fire or heat it
4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects
5. Non-professional personnel are prohibited to disassemble and repair by themselves
