DC/DC Boost Buck Converter 12V to 24V 15A 360W BEYIMEI Step up Converter Module Waterproof Power Supply Board Voltage Stabilizer forTransformer for Car Audio Solar Power System LCD Television
- Parameters: Input voltage range 10V-22V, rated input voltage 12V, output voltage 24V, output current 15A, output power 360W, conversion rate over 95%
- Protection Function: BEYIMEI boost converter has over-current, overheat, short-circuit and over-voltage protection function
- Functional features: The power supply module is waterproof, moisture-proof, shock-proof, and can be applied to various harsh working environments
- Aluminum housing: the step-up transformer adopts aluminum housing, which is stronger and easier to dissipate heat than plastic housing
- Wide range of applications: trucks, cab radios, golf carts, car stereos, LCD TVs, advertising screens, LED lights, monitoring systems, motors, solar energy, electronic systems and so on

Additional information
Additional information
Weight | 0.29 kg |
---|

DC/DC Boost Buck Converter 12V to 24V 15A 360W BEYIMEI Step up Converter Module Waterproof Power Supply Board Voltage Stabilizer forTransformer for Car Audio Solar Power System LCD Television
Description
DC/DC 10-22V to 24V15ABoost Converter
Parameters:
Name :DC Boost Converter
Brand: BEYIMEI
Function:Voltage Boost
Input Range:10-22V
Rated Input Voltage:12V
Output Voltage: 24V
Output Current: 15A MAX
Output Power:360W MAX
quiescent dissipation:≤4 0MA
Transfer Efficiency:95%

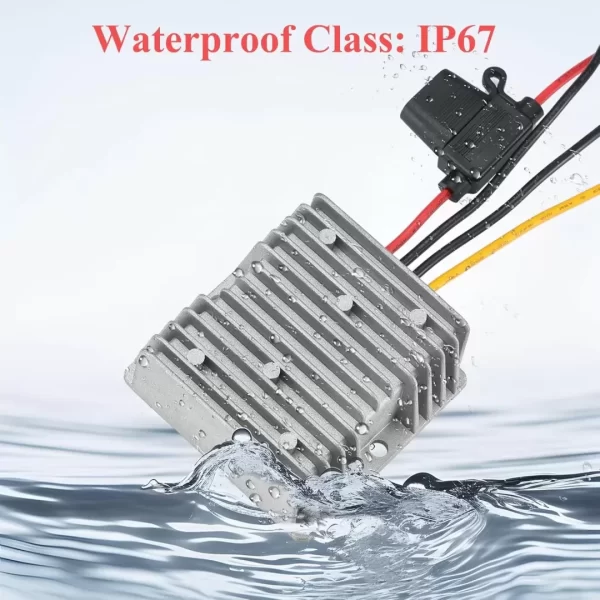

Waterproof Rating: IPX-7
Working Temperature: -20-65°
Storage Temperature:-40-85°
Working Humidity: 10%-90%RH
Heat Dissipation Method:Natural Heat Dissipation

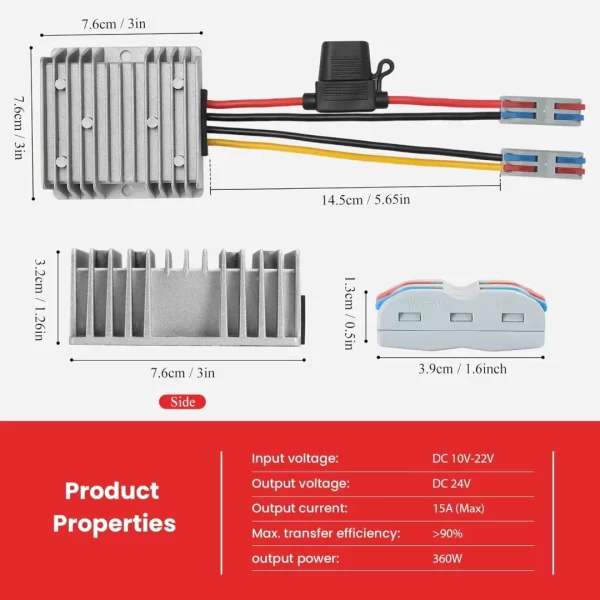

Size:
L*W*H: 2.91 *2.91*1.25in
Weight: 9.87oz
defencive function:
Short-circuit protection:✔
Overtemperature protection:✔
Overcurrent protection:✔
Anti-connection protection:✘
⚠Cautions:
1. Do not use it near a heat source (such as a fire or a heater)
2. Do not connect the input line to 220V electricity
3. Do not put the product into the fire or heat it
4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects
5. Non-professional personnel are prohibited to disassemble and repair by themselves
Package Includes:
1x DC to DC Voltage Boost Transformer Board
Please feel free to contact us if you have any questions with installation or quality.
