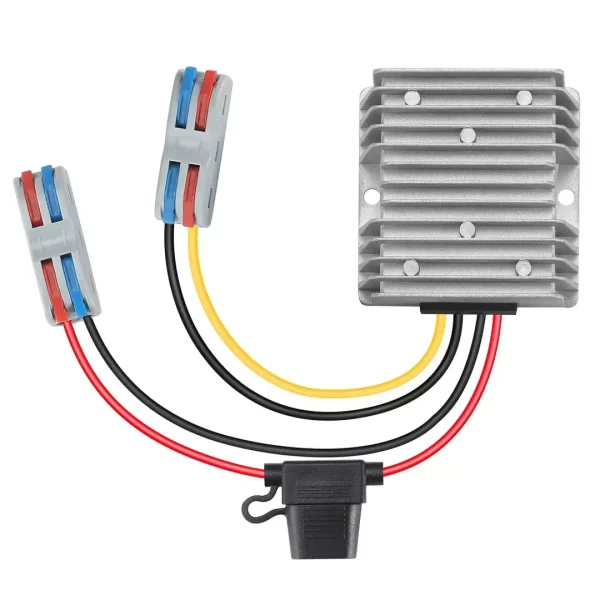

BEYIMEI DC to DC Converter 20-72V 24V/48V/60V to DC 12V10A Buck Converter

Description

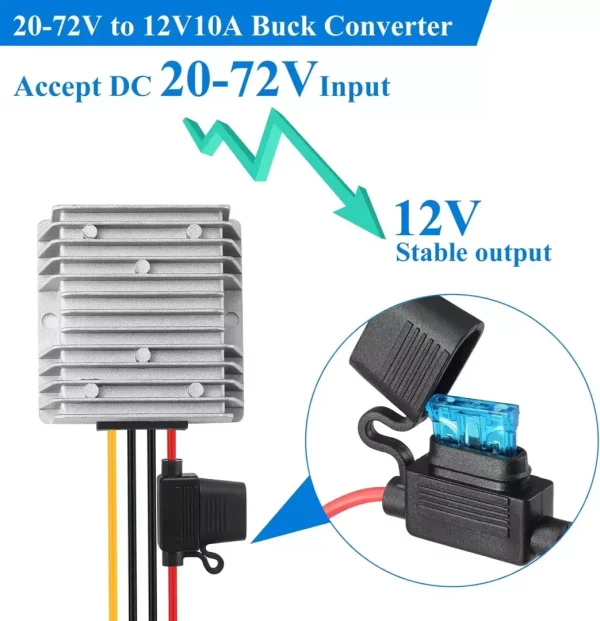

DC/DC 20-72V 24V/48V/60V Step down to 12V10A CONVERTER

Parameters:
Name :DC Buck Converter
Function：Voltage Reduce

Input Range：20-72 v

Rated Input Voltage：24V/48V/60 V

Output Voltage: 12V

Output Current: 10A MAX

Output Power:120W MAX

quiescent dissipation:≤30MA

Transfer Efficiency：95%

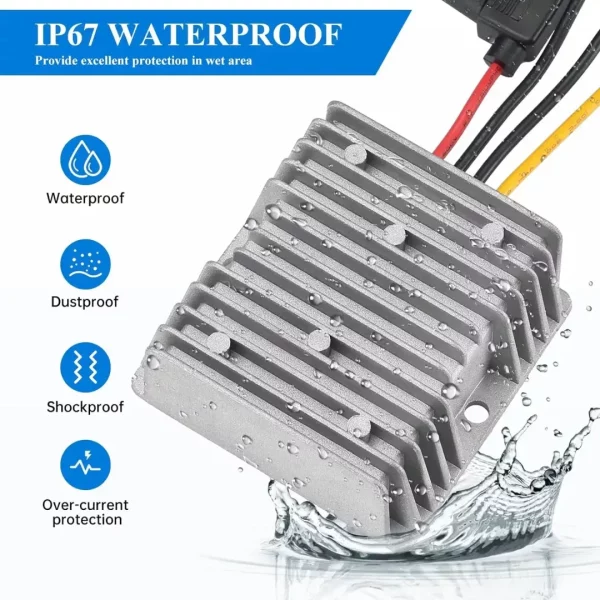

Waterproof Rating: IP67

Working Temperature: -20-65°

Storage Temperature：-40-85°

Working Humidity: 10%-90%RH

Heat Dissipation Method：Natural Heat Dissipation

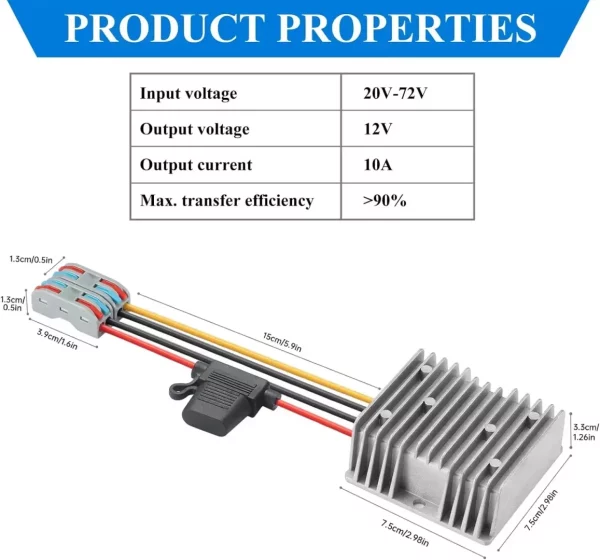

Size:
L*W*H: 2.91 *2.91*1.25in

Weight: 9.87oz

defencive function:

Short-circuit protection：✔

Overtemperature protection:✔

Overcurrent protection:✔

Anti-connection protection:✘

⚠Cautions：

1. Do not use it near a heat source (such as a fire or a heater)

2. Do not connect the input line to 220V electricity

3. Do not put the product into the fire or heat it

4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects

5. Non-professional personnel are prohibited to disassemble and repair by themselves

Package Includes:

1x DC to DC Voltage Down Transformer Board

Please feel free to contact us if you have any questions with installation or quality.
