BEYIMEI PCIe 4X SATA Card 6 Ports,SATA III 6 Gbps Controller Expansion Card, ASM1166/SATA 3.0 Non-Raid,with 6 SATA Cables, (Support 6 SATA 3.0 Devices)
€38.99
Specifications:
Expansion of 6 SATA 3.0 6G interface array cards through PCI-Express 4X GEN3 slot
Does not support hardware RAID mode: only software RAID
Features:
Compliant with PCI-Experss specification V3.0 and backward compatible PCI-Express 4x
Compliant with Serial ATA Specification 3.0
The chip is the X2 interface of PCI Express (the interface is 4X), compatible with PCI Express x4, x8 and x16 slots.

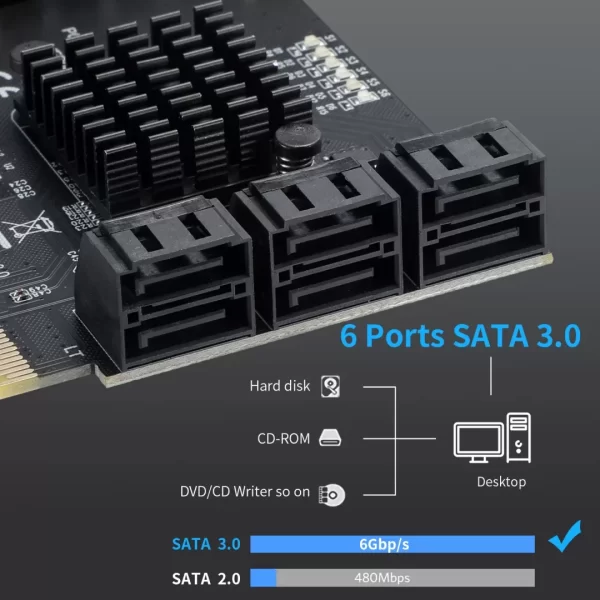

The supported communication rate is 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
Hot swap and hot swap.
Support native command queue (NCQ)
Support FIS switch based on port multiplier switch or command.
Compatible with SATA 6G, 3G and 1.5G hard drives.

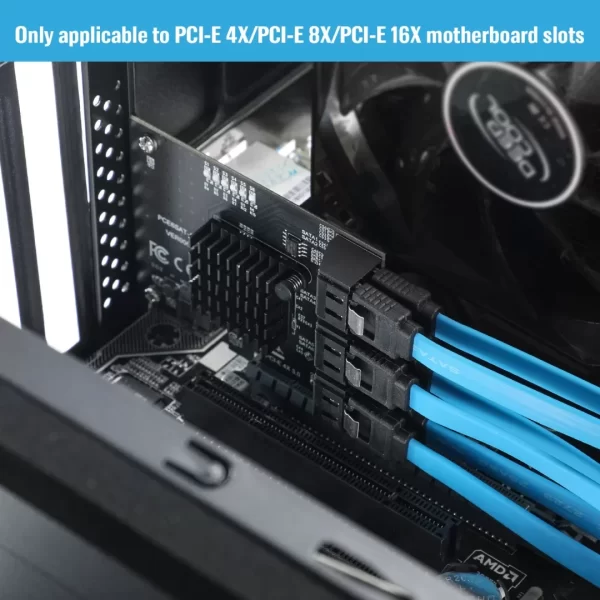

Can only be used in PCI Express x4, x8 and x16 slots
241 people are viewing this right now
50 in stock
Guaranteed safe & secure checkout
Additional information
Additional information
| Weight | 0.2 kg |
|---|
BEYIMEI PCIe 4X SATA Card 6 Ports,SATA III 6 Gbps Controller Expansion Card, ASM1166/SATA 3.0 Non-Raid,with 6 SATA Cables, (Support 6 SATA 3.0 Devices)
€38.99
Description
- * Simple to Use : NO Driver required Plug and play, support 2.5 inch solid state drive, 2.5 inch mechanical hard drive, 2.5 inch Blu-ray drive, 3.5 inch mechanical hard drive, 3.5 inch Blu-ray drive, etc. It is widely applied as start-up disk, support hot swappable.
- * SATA 3.0 & PCIE V3.0 : Support SATA transfer rate: SATA 3 (6Gbps), SATA 2 (3Gbps), SATA 1 (1.5Gbps). Compliant with PCI-Express specification V3.0 and backward compatible with V2.0. PCI-Express X4 interface, and compatible with PCI-Express X4/X8/X16 slots(recommended to use under PCI-E 3.0, faster).
- * 6 Ports Adapter Card — You could add 6 6Gbp/s SATA 3.0 devices to your computer with this PCIe SATA card.(4X bidirectional bandwidth theoretical speed up to 8GB/S) ,Support Intelligent Sleep – If you do not operate the computer for 3 minutes, the hard disk will enters an automatic sleep mode , and will automatically activates when rewriting data.

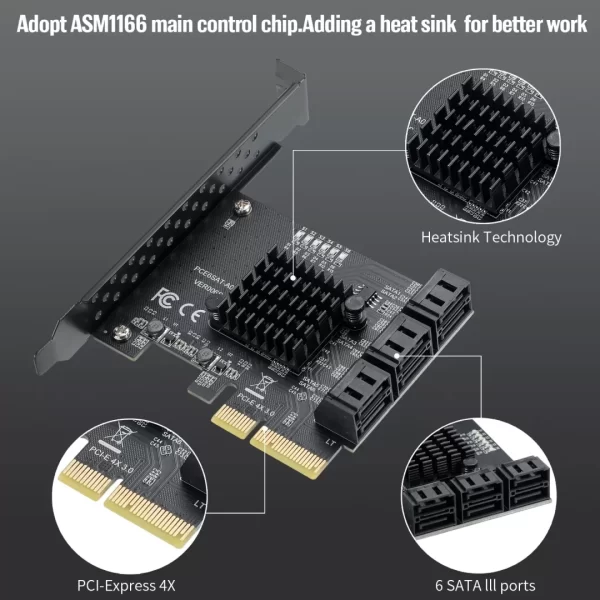

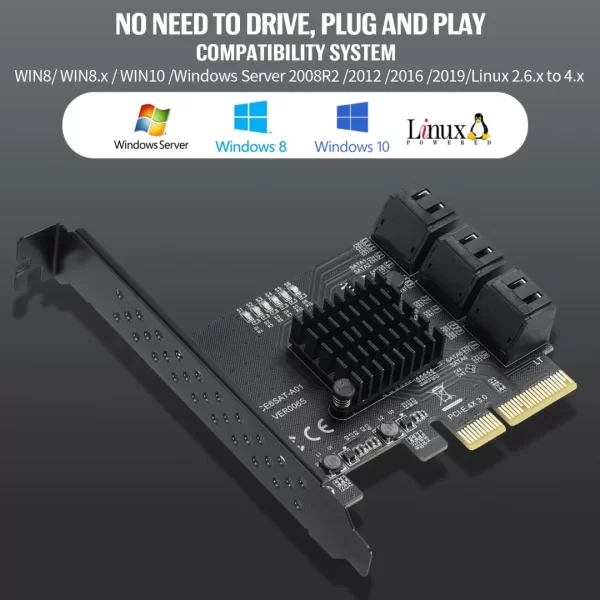

- * Multiple Operating Systems Support : Adopt imported solution ASMedia ASM1166/SATA3 solution. It can support multiple operating systems:Compatible with Windows / 8 / 10 / synology /Ubuntu /Linux.

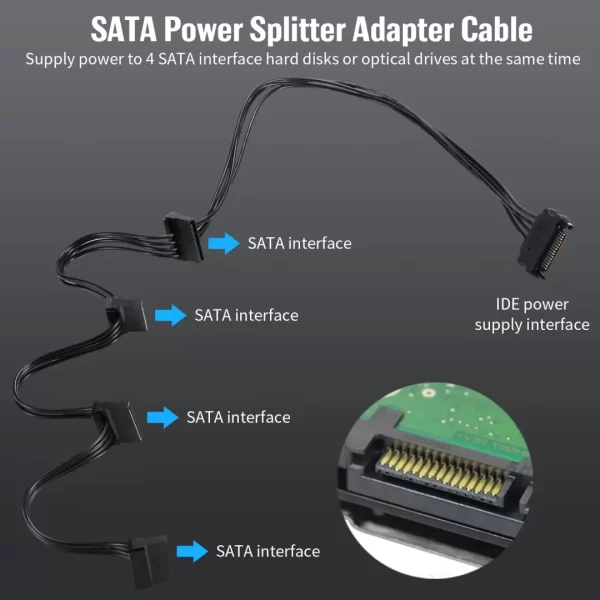

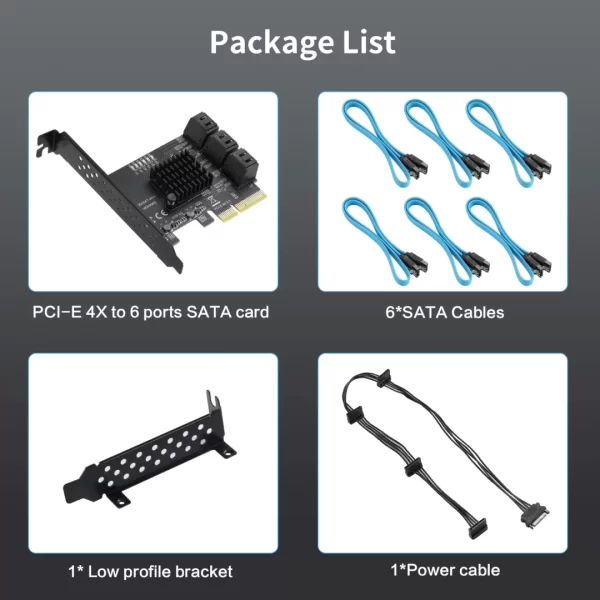

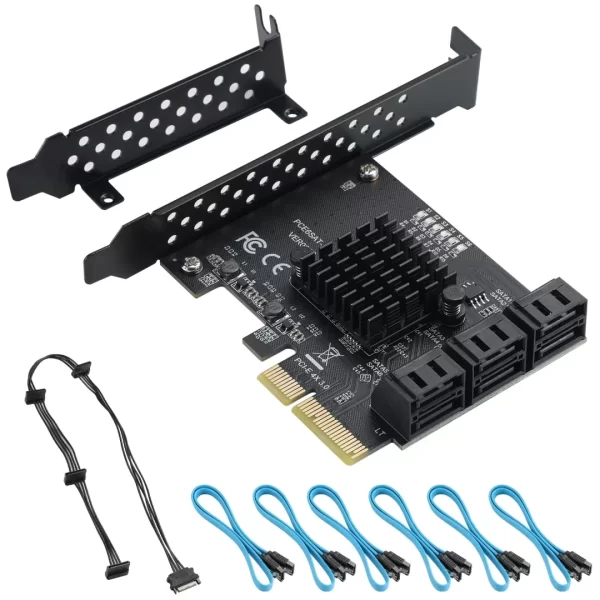

- *Package includes 1 * PCIe SATA 3.0 controller card , 6 * SATA cable and 1x 15pin SATA power splitter cable,1* Standard Profile Bracket,1* Low Profile Bracket.
