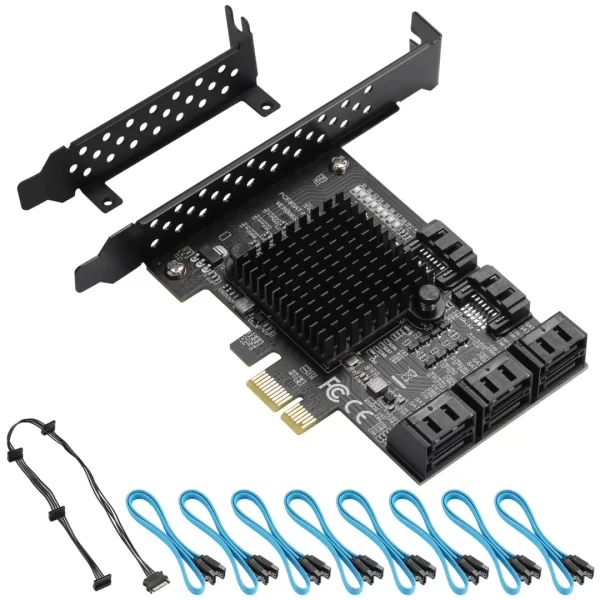

BEYIMEI PCIe SATA Card 8 Ports, with 8 SATA Cables, Power Splitter Cable andLow Profile Bracket,SATA 3.0 Controller Expansion Card, PCI-E X1 3.0 Gen3 (6Gbps) Controller Card (ASM1064+JMB575)
€39.99

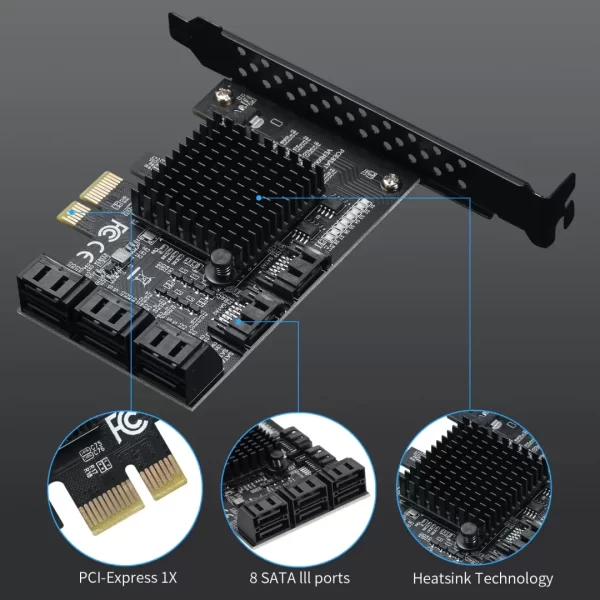

Product Name: 8-Port SATA3.0 Expansion Card
Product Root: ASM1064 + JMB575
Product Interface: PCI-E 1X 3.0

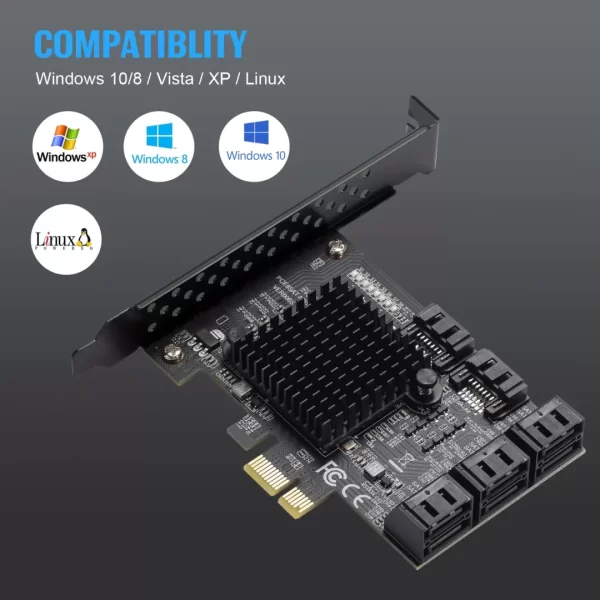

Support System: WIN8 / WIN10 / Ubuntu
Conforms to Serial ATA 3.0 specification, backwards compatible with SATA2.0 SATA1.0
Follow PCI-Express v2.0 specification and backwards compatible with PCI-Express v1. 0.
Supports communication speeds of 6.0 Gbit / s, 3.0 Gbit / s and 1.5 Gbit / s
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
Supports the AHCI1 .0 mode and IDE mode
Native command queue (NCQ) support
Support FIS based on port multiplier switch or command switch.
Support hot hot swap.
Compatible with SATA6G , 3G and 1.5G hard drives

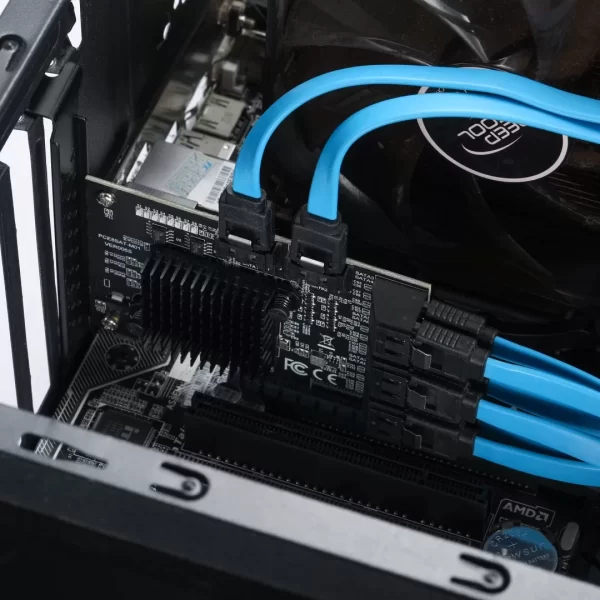

System requirements: A PCI Express 1x slot is available that supports 1x / 4x / 8x / 16x
Information on the speed description 1. The best effect can be achieved with the SATA3.0 data cable.
2. The setting of the motherboard BOIS: SATA mode should be changed to AHCI.
Although some motherboards are PCIE version 2.0, by default BOIS does not enable gen2 high speed mode, which must be enabled manually.
The fastest speed of PCI-E 2.0 is 380-450 m / s. When connected to PCI-E1.0, the speed is only 200-300 m / s.
Different computer configurations and SATA SSDs have different speeds.
3. SATA ports slow down when used at the same time. This is not for users looking for speed. They are only used for expansion hard disk interfaces.
⭐ If you have any questions, please feel free to contact us. We will help you with any questions about this product within 24 hours.

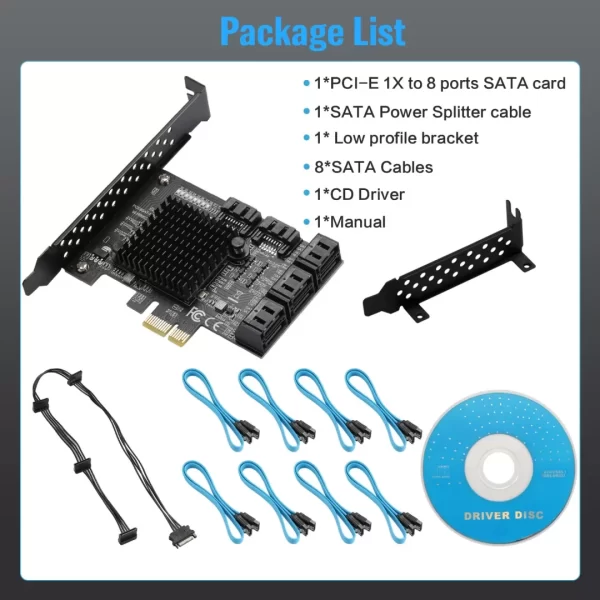

Packing list
1 * PCIe X1 to 8 SATA 3.0 card
8 x SATA cables
1 x low-profile bracket
1 x manual
1x 15pin SATA power splitter cable
139 people are viewing this right now
50 in stock
Guaranteed safe & secure checkout
Additional information
Additional information
| Weight | 0.22 kg |
|---|
BEYIMEI PCIe SATA Card 8 Ports, with 8 SATA Cables, Power Splitter Cable andLow Profile Bracket,SATA 3.0 Controller Expansion Card, PCI-E X1 3.0 Gen3 (6Gbps) Controller Card (ASM1064+JMB575)
€39.99
Description
- 8 Ports Sata Card— This PCIE SATA card allows you to add 8 SATA 3.0 6Gbps devices to your computer.
- Powerful chip — Using the ASMedia ASM1064+JMB5XX, enhances heat dissipation, long-lasting high temperature resistance and more stable operation.
- Support interface — There is an available PCI Express X1 slot, while supporting PCI-E X4/ X8/ X16 (This SATA 3.0 expansion card is only suitable for motherboard slots via PCI-E . Do not apply to PCI slots).
- Support system — WIN8 /WIN10/ LINUX。Easy to install, plug and play.
- This PCIe 1X 8SATA expansion card contains Included 8 SATA cables and 15pin SATA power splitter cable, make connection easier.It provides you with a complete set of perfect match.
