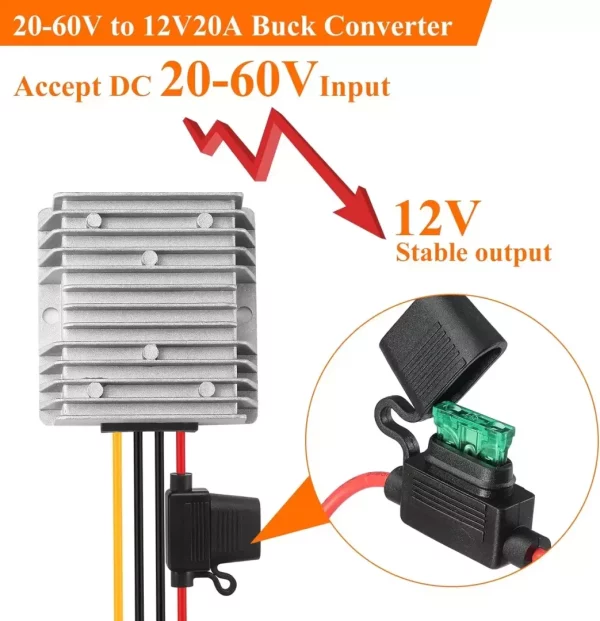

BEYIMEI Voltage Reducer,DC 20-60V 24V/48V to DC 12V20A Step Down Converter Regulator
- Rated Input Voltage DC 24V/48V to 12V20ADC/DC converter regulator reducer step down.Meet your actual power supply needs.
- Output Voltage: 12V DC(Fixed Output), Output Current:20A Max, Output Power:240w Max, High Conversion Efficiency: up to 95%
- Protection: Built in overcurrent, overtemperature and short-circuit protection
- Application: Suitable for truck vehicle, golf cart, led strip light, screen, monitoring system, Electronic systems and DIY etc

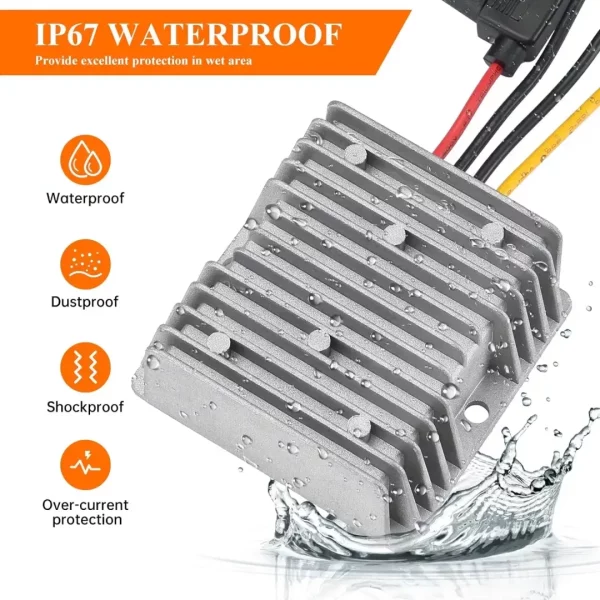

- Design:Aluminum case and silicone sealed IP67 waterproof, shockproof and moisture proof for more durability
Additional information
Additional information
| Weight | 0.26 kg |
|---|
BEYIMEI Voltage Reducer,DC 20-60V 24V/48V to DC 12V20A Step Down Converter Regulator
Description
DC/DC 20-60V 24V/48V Step down to 12V20A CONVERTER
Parameters:
Name :DC Buck Converter
Function：Voltage Reduce
Input Range：20-60 v
Rated Input Voltage：24V/48 V
Output Voltage: 12V
Output Current: 20A MAX
Output Power:240W MAX
Transfer Efficiency：95%
Waterproof Rating: IP67
Working Temperature: -20-65°
Storage Temperature：-40-85°
Working Humidity: 10%-90%RH
Heat Dissipation Method：Natural Heat Dissipation

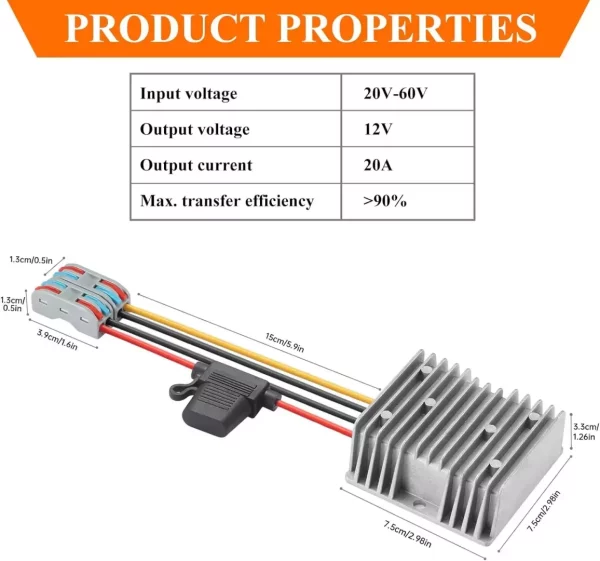

Size:
L*W*H: 2.91 *2.91*1.25in
Weight: 9.87oz
defencive function:
Short-circuit protection：✔
Overtemperature protection:✔
Overcurrent protection:✔
Anti-connection protection:✘
⚠Cautions：
1. Do not use it near a heat source (such as a fire or a heater)
2. Do not connect the input line to 220V electricity
3. Do not put the product into the fire or heat it
4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects
5. Non-professional personnel are prohibited to disassemble and repair by themselves
Package Includes:

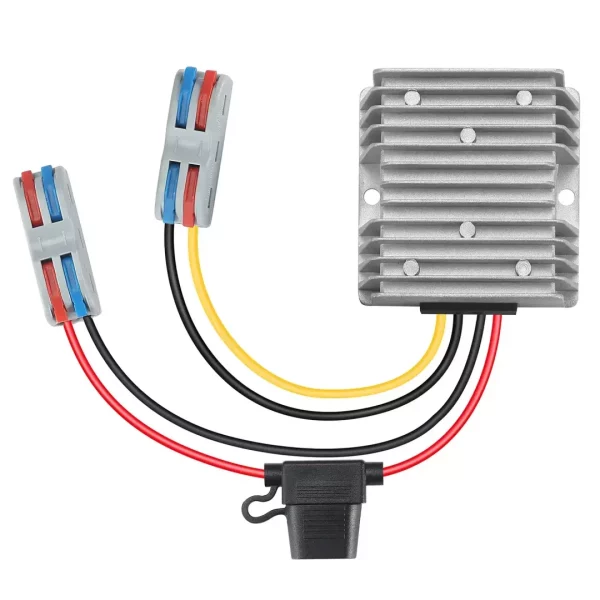

1x DC to DC Voltage Down Transformer Board
Please feel free to contact us if you have any questions with installation or quality.
