BEYIMEI Waterproof DC 24V Step-Down to 12V 5A Conversion Voltage Regulator Reducer, Adjustable Power Conversion Transformer for Golf Carts, Automobiles.Trucks Light Bar.
- 24V Down To 12V Converter,Voltage input: DC 24V, output: DC 12V 5A. Voltage Regulator Reducer the DC 24V into DC 12V. Low power consumption.

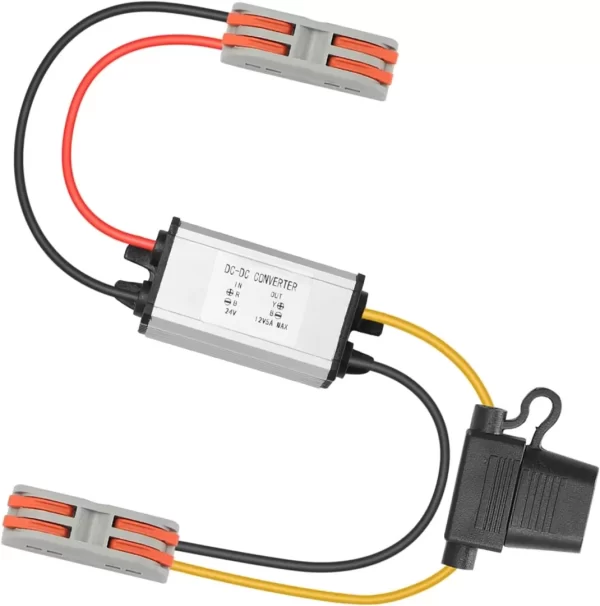

- Compact And Easy To Install,DC24V to 12V converter is equipped with quick cable connectors for quick connection. You can save a lot of trouble without taping wires.

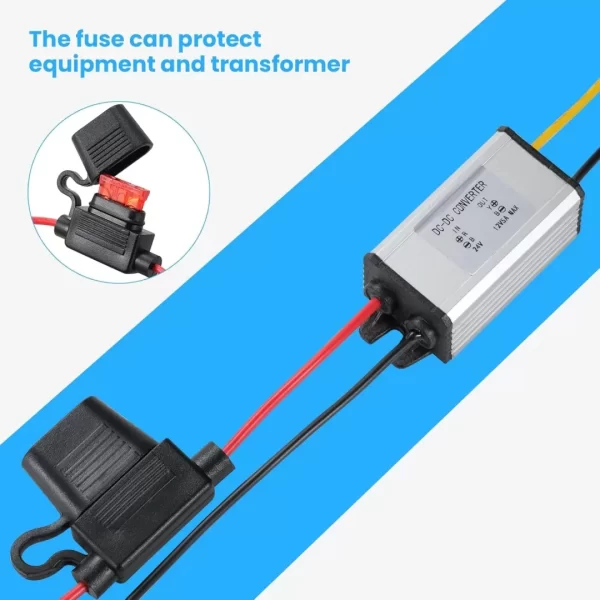

- Multiple Protection,Avoid over-load, Over-current, Over-temperature, Short-circuit, Over-voltage. Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide Application,Suitable for Large trucks, Golf cart, Club car, taxi radio, Emu, Car audio, LCD TV, Advertising screen, LED strip lights, monitoring system, Electronic systems and DIY etc.
- Your satisfaction is our priority. Please feel free to contact us if you have any questions with installation or quality.
Additional information
Additional information
| Weight | 0.06 kg |
|---|
BEYIMEI Waterproof DC 24V Step-Down to 12V 5A Conversion Voltage Regulator Reducer, Adjustable Power Conversion Transformer for Golf Carts, Automobiles.Trucks Light Bar.
Description
DC/DC 24V down to 12V/5A Voltage Converter
Parameters
Name：Voltage Reduction Converter
Function：Voltage Reduce
Typical Input Voltage: 24V
Efficiency: Over 90%（When 24V input）
Output voltage: 12V DC
Output current: 5A
Output power:60W

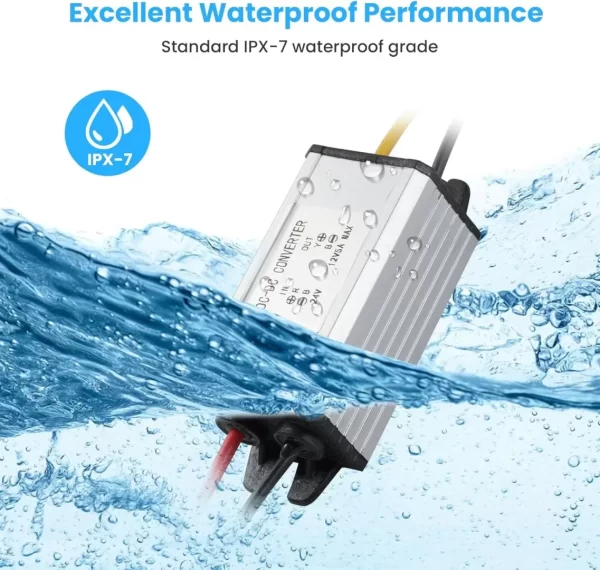

Waterproof rating: IPX-7
Working temperature: -25℃ ～ +85℃
Working Humidity: 0～95%RH
Storage temperature：-40℃ ～ +100℃
Storage Humidity: 0～95%RH

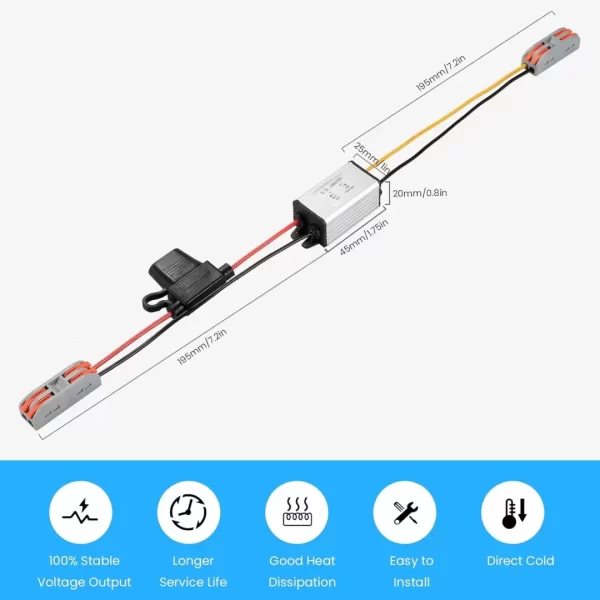

L*W*H: 57.5*25*21MM
Weight: about 65G
Advantages
Adopting imported chips, good quality and low price
Synchronous rectification technology, conversion rate of more than 96%, very low heat generation
Over-voltage, over-current, over-temperature, short-circuit and other braking automatic protection function and normal operation after the conditions are restored

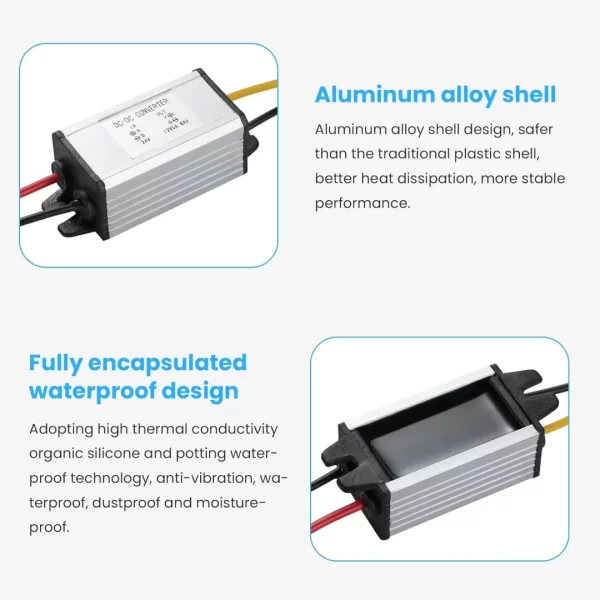

Epoxy resin potting, waterproof, shockproof, moisture-proof, dust-proof, low heat generation
Small volume, easy to install. Stable performance, suitable for long-term work
DC-Buck Converter Safety Manual
1. the load connected to the output of the power controller should not be higher than the maximum load power; any higher load will damage the power controller.
2. if the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures is a guarantee of long-term reliable operation of the power supply unit.
3. Do not use the device near heat sources such as fire or heaters.
4. Do not connect the input cable to the 220 V household power supply.
5. do not place the appliance near sources of ignition or heaters. 6.
6. the appliance must not be dismantled or repaired by non-professionals.
7.The input voltage must not exceed the fluctuation range of the converter.
8.The output power of the converter must be greater than the power required by the connected devices.

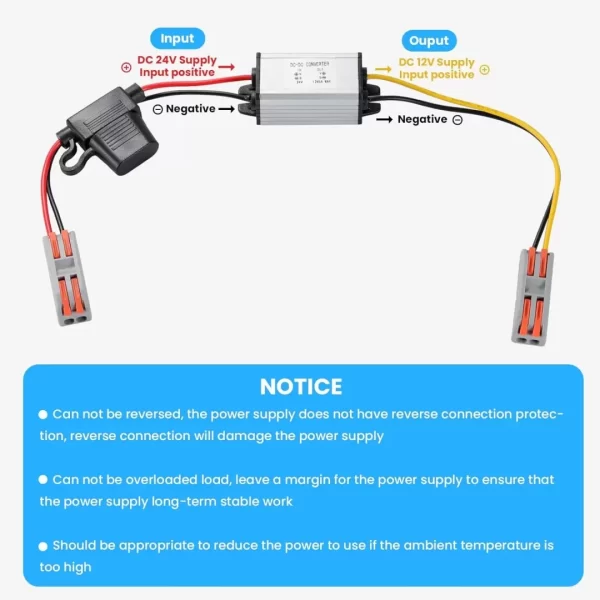

9.The positive and negative leads must not be reversed.
Package Includes
1x DC to DC Voltage Down Transformer
