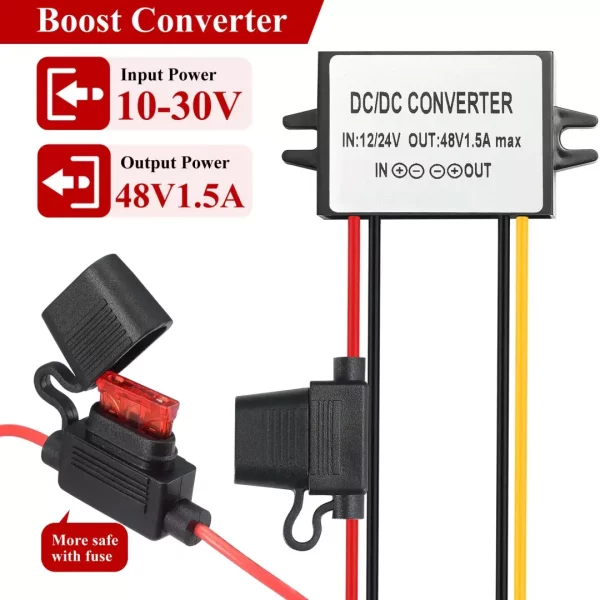

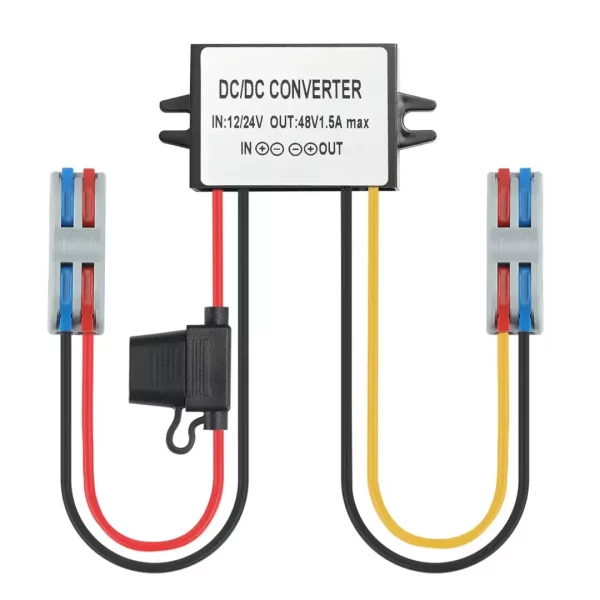

DC/DC Boost Buck Converter 12/24V to 48V 1.5A 72W BEYIMEI Step up Converter Module Waterproof Power Supply Board Voltage Stabilizer forTransformer for Car Audio Solar Power System LCD Television

10.00
0 sold
  • Parameters: Input voltage range 10V-30V, rated input voltage 12V/24V, output voltage 48V, output current 1.5A, output power 72W, conversion rate over 95%
  • Protection Function: BEYIMEI boost converter has over-current, overheat, short-circuit and over-voltage protection function
  • Functional features: The power supply module is waterproof, moisture-proof, shock-proof, and can be applied to various harsh working environments
  • Easy to install: The voltage converter is ultra-thin, small and easy to install. Epoxy resin potting, the quality of long-term stability and reliability
  • Wide range of applications: trucks, cab radios, golf carts, car stereos, LCD TVs, advertising screens, LED lights, monitoring systems, motors, solar energy, electronic systems and so on
222 people are viewing this right now
100 in stock
Estimated Delivery:
16 - 18 Jun, 2025
Trust Badge
Guaranteed safe & secure checkout

Additional information

Additional information

Weight0.09 kg
DC/DC Boost Buck Converter 12/24V to 48V 1.5A 72W BEYIMEI Step up Converter Module Waterproof Power Supply Board Voltage Stabilizer forTransformer for Car Audio Solar Power System LCD Television

DC/DC Boost Buck Converter 12/24V to 48V 1.5A 72W BEYIMEI Step up Converter Module Waterproof Power Supply Board Voltage Stabilizer forTransformer for Car Audio Solar Power System LCD Television

10.00

Description

DC/DC 10-30V to 48V1.5ABoost Converter

Parameters:
Name :DC Boost Converter

Brand: BEYIMEI
Function:Voltage Boost

Input Range:10-30V

Rated Input Voltage:12/24V

Output Voltage: 48V

Output Current: 1.5A MAX

Output Power: 72W MAX

quiescent dissipation:≤20MA

Transfer Efficiency:95%

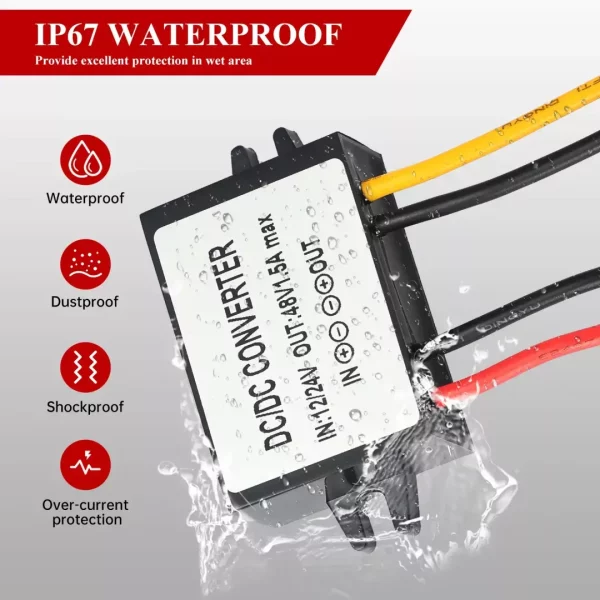

Waterproof Rating: IPX-7

Working Temperature: -20-65°

Storage Temperature:-40-85°

Working Humidity: 10%-90%RH

Heat Dissipation Method:Natural Heat Dissipation

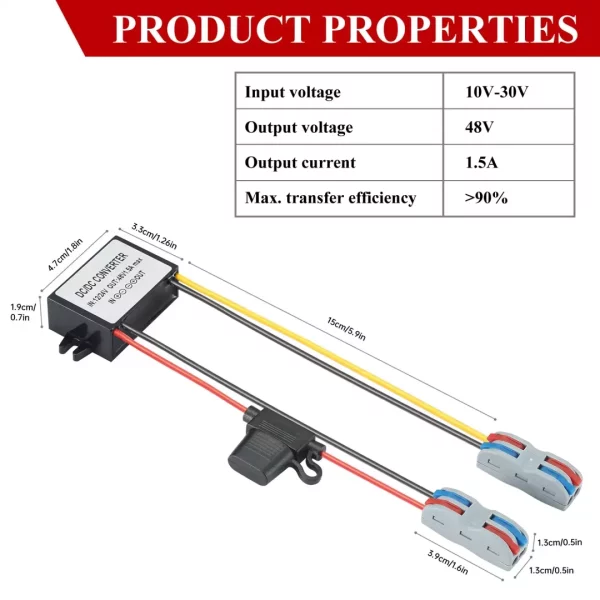

Size:
L*W*H: 1.81 *1.25*0.7in

Weight: 1.76oz

defencive function:

Short-circuit protection:✔

Overtemperature protection:✔

Overcurrent protection:✔

Anti-connection protection:✘



⚠Cautions:

1. Do not use it near a heat source (such as a fire or a heater)

2. Do not connect the input line to 220V electricity

3. Do not put the product into the fire or heat it

4. Do not short-circuit the positive or negative poles of the product with wires or other metal objects

5. Non-professional personnel are prohibited to disassemble and repair by themselves

Package Includes:

1x DC to DC Voltage Boost Transformer Board

Please feel free to contact us if you have any questions with installation or quality.
